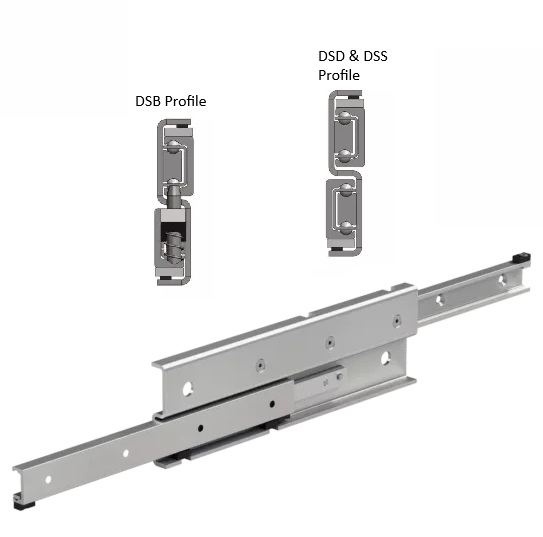

The DS Series has a high moment of inertia & rigidity in a slim profile, available in three different designs:
DSD: Damping in closed position & double-sided stroke
DSS: Maximum thickness reduction & one-way stroke
DSB: Locking capability in the closed position & one-way stroke
Product Features
Full-extension ball slide with hardened raceways
Single or double stroke
Maximum payload over 25,000 N/pair.
Length up to 1,970mm Stroke up to 2,026mm
Available in multiple sizes
Please refer to the data sheet for further details
